CMF9008 Nominal nominal diameter (mm) 8 joggle R3/8”customizable

Remarks

For accurate selection and performance, consider gas coefficient factors and consult the manufacturer if there is a large difference between the chosen gas and air.

Let me know if there's anything else you need or if you need more details on a specific part!

Gas Media

• A: Air
• N: Nitrogen (N2)
• C: Carbon Dioxide (CO2)
• O: Oxygen (O2)
• E: Helium (He)
• R: Argon (Ar)
• Other: Other gas connections (vendor specific)

Output Options

• V: 1-5V
• B: RS485 (optional)

Product Caliber

• Nominal Nominal Diameter: 8 mm

Serial Number

Explanatory Notes

1. The default unit of maximum and minimum flow is SLPM, which is the flow under standard conditions (101.325 kPa, 20℃).
2. Due to the gas coefficient factor between different gases, if there is a significant difference between the selected gas and air, the manufacturer’s technical personnel should be informed in advance of the approved flow rate and the corresponding product model.

Nominal Diameter and Maximum Flow Specification

• CMF 9008:
  • Nominal Diameter: 8 mm
  • Maximum Flow Specification Selection (SLPM): 20, 30, 40, 50, 80, 100, 150, 200, 250, 300

Functional Items

• Nominal Diameter: 8 mm
• Connection: R3/8” (customizable)

Performance Parameters

• Specifications: CMF9008
• Stimulate the Menstrual Flow: 8 mm
• Scale Ratio: 100:1
• Power Supply Voltage: 7~24 VDC, 50mA (customizable)
• Accuracy: ±1.5% FS
• Repetitiveness: 0.25%
• Response Time: 67 ms (Default, customizable)
• Maximum Pressure: 0.5 MPa (customizable max. 0.8 MPa)
• Communication Mode: RS485 (MODBUS)
• Output Method:
  • Analog outputs of 1-5 VDC
  • 4-20mA
• Display Mode:
  • Instantaneous flow: SLPM
  • Cumulative flow: SL
• Temperature:
  • Medium Temperature: -10~65℃
  • Ambient Temperature: -25~85℃
• Working Humidity: <100% RH (no ice, no condensation)
• Weight: 0.215 kg
• Connection: R3/8” (customizable)
• Calibration Conditions: Air, at 20℃, 101.325 kPa

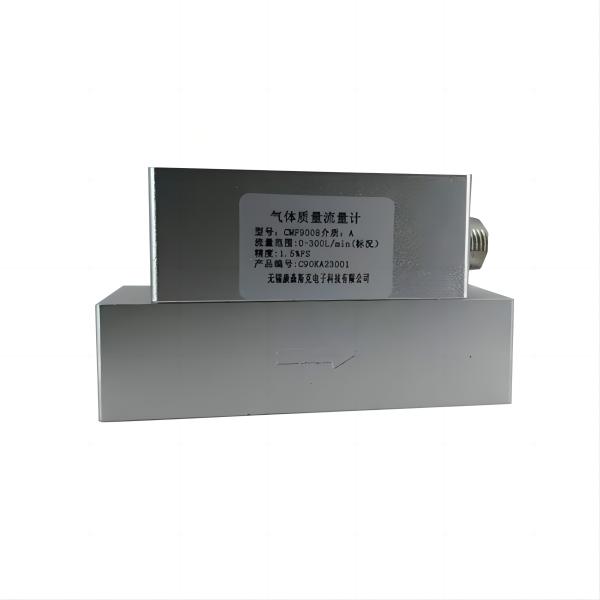

CMF9008 Nominal nominal diameter (mm) 8 joggle R3/8”customizable Images
